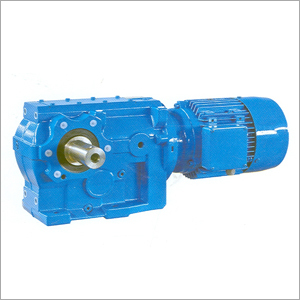

Stephan Geared Motor

Get a Price/Quote

MOQ : 1 Unit

Stephan Geared Motor Specification

Rated Voltage
415 V

Efficacy
IE2

Bearing Type
Deep Groove Ball Bearing

Noise Level
<65 dB

Poles Number
4 Pole

Cooling Method
Surface Cooling

Pressure
Standard Atmospheric

Horse Power
0.5 HP

Torque
19 Nm

Starting Type
DOL

Current Type
AC

Rated Frequency
50 Hz

Sealed Type
IP55 Dust & Water Protected

Ambient Temperature
-15C to +40C

Power Rating
0.37 kW

Voltage
415 V

Features
Robust Construction, Low Noise, Maintenance-Free

Motor Type
Induction Geared Motor

Product Type
Geared Motor

Output Power
0.5 HP

Frequency (MHz)
50 Hz

Protect Feature
Totally Enclosed

Phase
Three Phase

Speed
1440 RPM

Power
0.37 kW

Color
Blue

Dimension (L*W*H)
410 x 220 x 180 mm

Weight
22 kg

Shaft Diameter
24 mm

Mounting Type
Foot Mounted

IP Rating
IP55

Application
Material Handling, Conveyors, Automation

Service Factor
1.15

Output Shaft Position
Horizontal

Lubrication
Grease Lubricated

Gear Type
Helical

Duty
S1 Continuous

Casing Material
Aluminium Alloy

Insulation Class
F Class

Stephan Geared Motor Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cheque

Supply Ability
Unit

Sample Available
Yes

Sample Policy
Free samples are available

Packaging Details
Standard Packaging

Main Domestic Market
All India

About Stephan Geared Motor

Being the leading name of the industry, we trade and supply a superior range of Stephan Geared Motors. These motors are highly acclaimed in the market for durability, high strength, compact design and operational fluency. Procured from our trusted manufacturers, these geared motors are widely used for conveyors, agitators, elevators, cranes, crushers, etc. Moreover, these Stephan Geared Motors can be availed from us in varied specifications to meet the diverse needs of the clients.

Features:

Robust design
Easy to install
Abrasion resistance

Advanced Helical Gear Technology

This motor incorporates precision helical gears, resulting in smooth transmission and significantly reduced mechanical noise. The advanced gear design increases efficiency and torque, making it highly suitable for continuous operations in automation and conveyor systems. Reliability is enhanced with grease lubrication, reducing both maintenance needs and operational downtime.

Rugged Aluminium Alloy Construction

With a casing crafted from lightweight yet strong aluminium alloy, this geared motor offers enhanced durability against environmental pressures. The IP55 protection rating further shields the motor from dust ingress and water jets, ensuring longevity and consistent performance even in challenging conditions.

Optimized for Material Handling and Automation

Engineered specifically for material handling applications, this motor supports seamless integration into conveyor systems and automated setups. Its horizontal shaft layout, deep groove ball bearings, and surface cooling contribute to high operational efficiency and safety, making it preferred in industrial settings across India.

FAQs of Stephan Geared Motor:

Q: How is the Stephan Geared Motor installed for optimal usage in material handling systems?

A: The motor is designed for foot mounting with a horizontal shaft position, ensuring stable attachment to conveyor bases or automation modules. This guarantees effective power transmission and ease of maintenance.

Q: What are the benefits of the IP55 dust and water protection rating on this motor?

A: The IP55 rating ensures the motor operates reliably in dusty or damp environments by preventing the ingress of particulate matter and water, thus extending its service life and reducing maintenance frequency.

Q: When should I select the S1 continuous duty Stephane Geared Motor for my operations?

A: Choose this motor for tasks requiring non-stop performance, such as conveyor systems or automation lines running without interruption, since it is rated for continuous operation and stable long-term output.

Q: Where can the Stephan Geared Motor be sourced in India?

A: It is available through authorized suppliers and traders across India who offer technical support, installation guidance, and after-sales service tailored to industrial material handling requirements.

Q: What maintenance is required for the grease lubricated helical gear system?

A: The helical gears are permanently lubricated with high-grade grease, making the motor maintenance-free under regular operating conditions. Periodic visual inspections are recommended to ensure optimal performance.

Q: How does the IE2 efficiency rating and low noise design benefit my automation processes?

A: IE2 efficiency minimizes energy consumption while the low noise operation (<65 dB) creates a quieter workspace, both of which are advantageous for sustainable, ergonomic, and productive automation environments.
